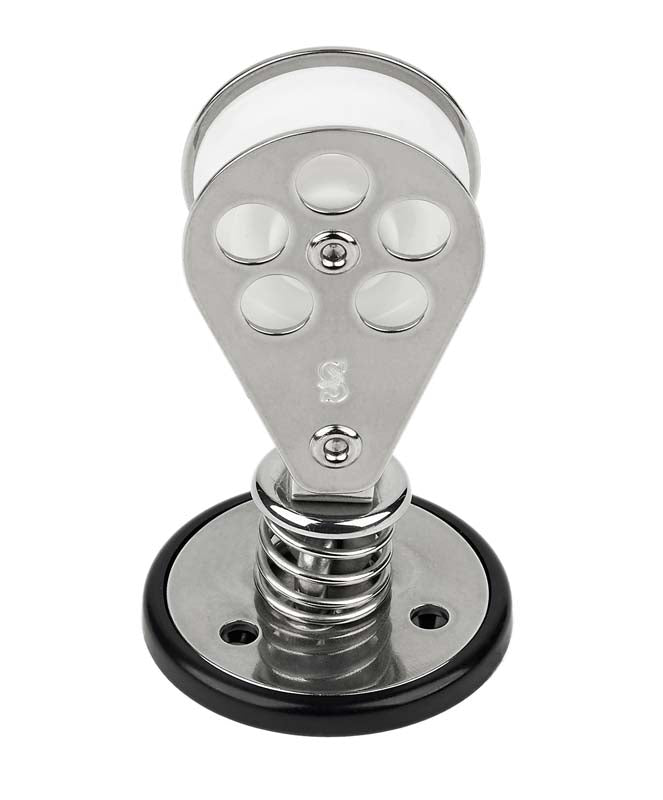

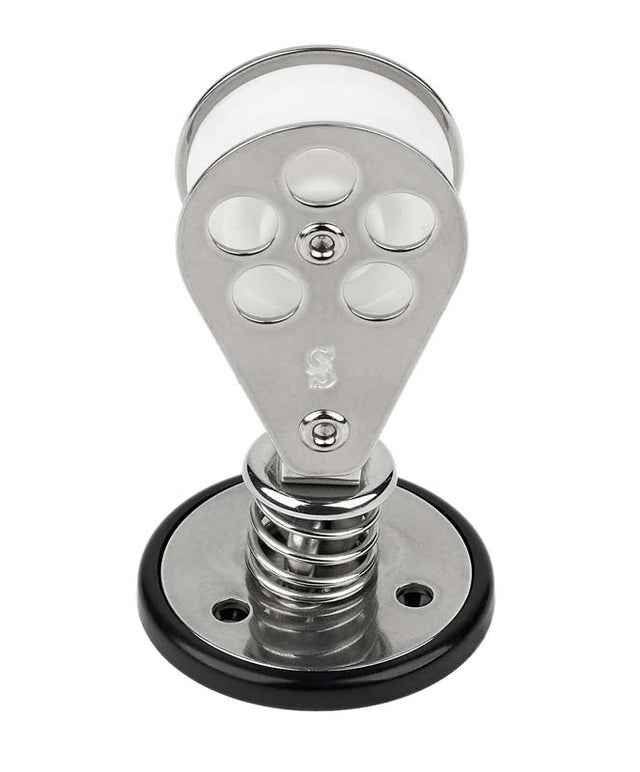

Stand up spring block with Stainless Steel cheeks. Delrin(tm) sheave ensures smooth operation and high safe working load. Separate backing plate #97-60.
Specifications:
Sheave Dia.1-7/16" (37 mm)
Max Line 7/16" (11 mm)
Dia. includes urethane base 2" (51 mm)
Height 3-17/32" (89 mm)
H2 2-5/32" (55 mm)
Fastener Size (3), #10 RH (5 mm)
C/C 1-13/32" (26 mm)
SWL 1000lbs (450 kg)
Weight Stain. 3.5 oz (99 g)
