THE BOSWORTH COMPANY

Y-VALVE 1/2 FLUSH MNT FEM.

SKU: BOS M94A

  • Sale
  • Regular price $119.00
Shipping calculated at checkout.

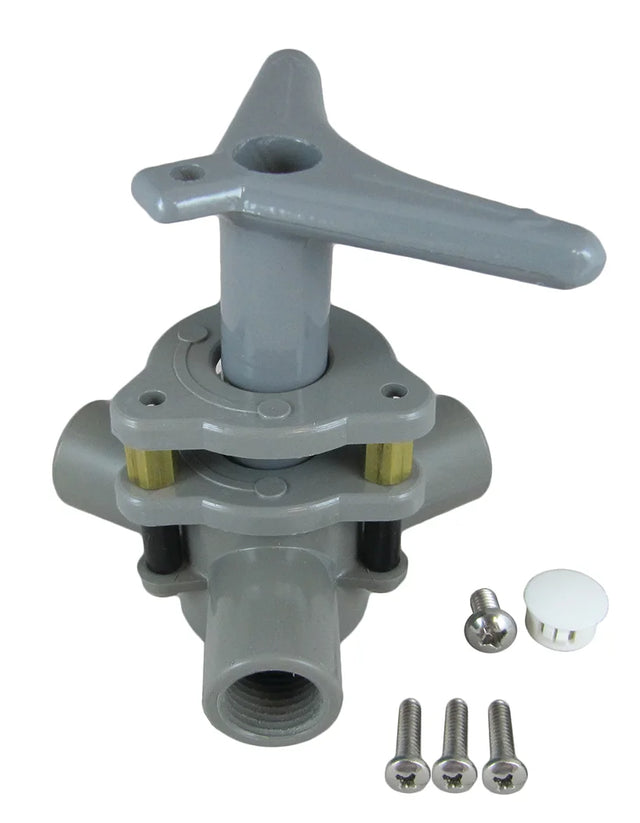

The Easiest-Turning Y-Valve you'll ever own! (Also called the "M-94".) Redesigned for ease of turning and to resist valve "freeze-up". Only the handle and an attractive face plate are visible above the deck, floor or wall. (Maximum wall thickness 3/4"). A removable stop ring converts all Sea-Lect Y-valves from a "2-Flow-Path" position mode to a "3-Flow-Path" position mode.

Features
• Durable, lightweight Acetal plastic
• Accommodates 1/2" - 1" ID hose
• Easy-turning, rugged, injection-molded handle (Also available in epoxy-coated aluminum.)
• Flush-mounted so that only handle and bonnet/trim ring are visible
• Locking tab on handle
• Arrows on handle indicate flow path
• Full port opening; supports either 2 or 3 flow path mode
• Optional barbed adapters shipped loose in box; install on ports of your choosing
• Max Pressure 40 psi (2.8 kg/cm2)
• Max Service Temp 212°F (100°C)
