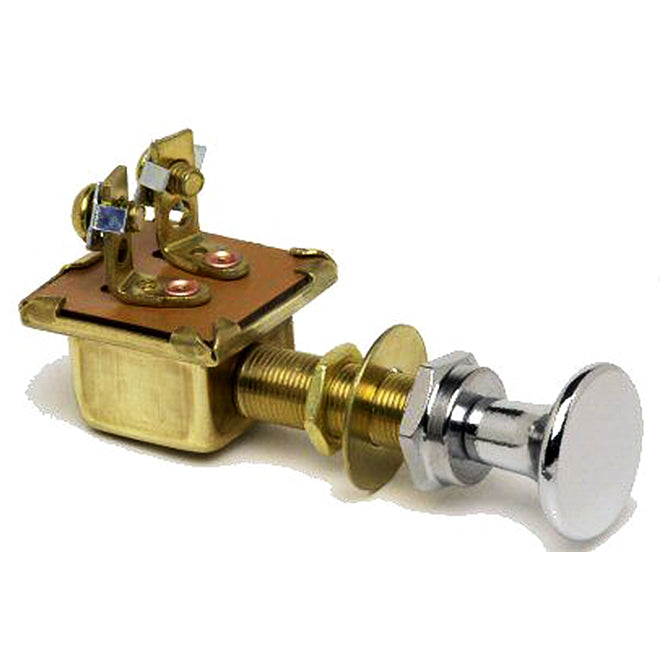

Cole Hersee Cole Hersee 2-Position Push-Pull Switch

Pole / Throw: SPST, Action: OFF - ON

Max. Operating Amperage: 10 Amps @ 12 Volt DC

Gasket Sealed Case Protects Against Moisture and Dust

Features:

• Single-circuit push-pull OFF-ON switch, normally off (pull for ON)
• Gasket sealed case protects against moisture and dust
• Supplied with mounting hardware: brass facenut, washer and hexnut
• Installs in panels up to 3

Specifications:

• Cole Hersee Model No. M-482 BP
• Switch Type: Push-Pull
• • Circuitry: SPDT - Single Pole / Single Throw
  • Action: OFF - ON
• Material: Brass housing and mounting stem, screw-on chrome-plated brass knob
• Illumination: No
• Common Applications: Various Off-On marine applications
• Operating Voltage: 6 - 36 Volt DC
• Max. Operating Amperage: 10 Amps @ 12 Volt DC
• Terminals: (2) Brass screw
• Dimensions:
• • Face knob: 7/8" dia.
  • Brass Mounting Stem: 3/8" dia. x 1-1/4" L
