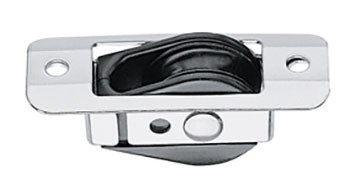

Low-friction Bullet blocks lead control lines aft. They are compact and lightweight, with fast trim and release under high or low loads. A range of styles lets these blocks adapt to almost all control line applications. Wire Bullet blocks use roller bearings to carry higher loads and feature hardcoat-anodized PTFE impregnated aluminum sheaves for strength and corrosion resistance.
- Sheave Ø (mm) - 29 mm
- Sheave Ø (in) - 1 1/8 in
- Length (mm) - 76 mm
- Length (in) - 3 in
- Weight (g) - 43 g
- Weight (oz) - 1.5 oz
- Maximum line Ø (mm) - 8 mm
- Maximum line Ø (in) - 5/16 in
- Fasteners (mm) - 5 RH mm
- Fasteners (in) - #10 RH in
- Mounting hole spacing (mm) - 57 mm
- Mounting hole spacing (in) - 2 1/4 in
- Cutout (mm) - 19 x 44 mm
- Cutout (in) - 3/4 x 1 3/4 in
- Maximum working load (kg) - 181 kg
- Maximum working load (lb) - 400 lb
- Breaking load (kg) - 907 kg
- Breaking load (lb) - 2000 lb
