Imtra

Project 500 Windlass w/Drum 50

SKU: IMT LW7901

  • Sale
  • Regular price $2,145.00
Shipping calculated at checkout.

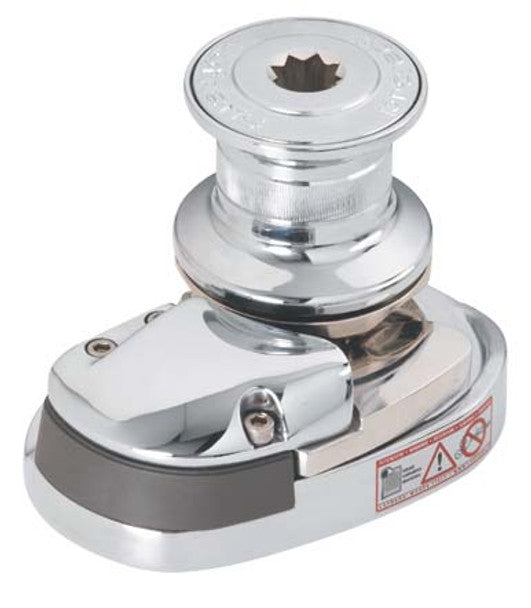

Project 500 Windlass, 500W, 12VDC, chrome finish, capstan version. Comes with standard stud length to allow a max clearance of 1".
Features :
  • Contemporary topworks styling and smooth lines enhance the foredeck
  • Our aft facing stainless pressure finger ensures smooth and trouble-free transition from rope to chain during retrieval and deployment
  • High ratio gearbox for fast retrieval
  • Stainless mainshaft
  • Worm drive sealed gearbox
  • Radially adjustable gearbox
  • Anodized aluminum gearbox housing
  • Bronze gears
  • Built in chainpipe
  • Neoprene deck gasket included
  • Clutch handle included
  • Option: Extra deck clearance model available, to 4 3/4"
Specifications :
  • Motor Wattage 500W
  • Version Capstan
  • Finish Chromed Bronze
  • Power Rating 850 lbs
  • Deck clearance Min. 18mm / Max. 30mm (1-1/8")
  • Retrieval Speed @ No Load 45'/min
  • Amperes @ No Load 40
  • Retrieval Speed @ Working Load 52'/min
  • Amperes @ Working Load 60
  • Approximate Ship Weight (lbs) 22
