Imtra

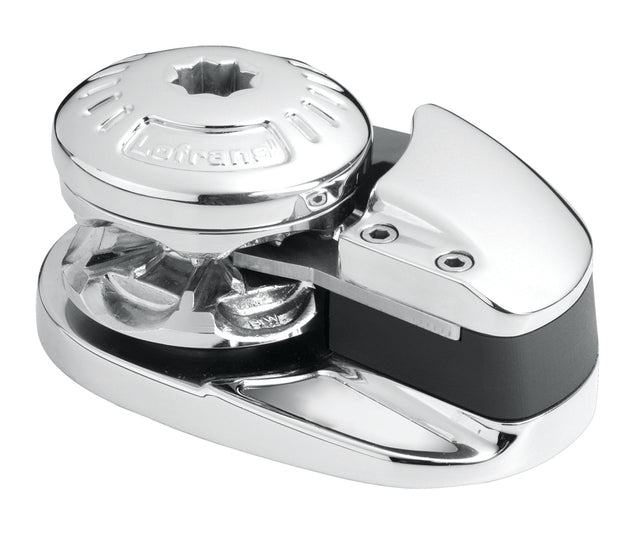

Project 500 Windlass Low Profi

SKU: IMT LW7901LP

  • Sale
  • Regular price $2,043.00
Shipping calculated at checkout.


Standard Equipment:
  • Rope/chain management system
  • Two Footswitches
  • Watertight Control Box
  • Clutch Release Handle
Features:
  • Contemporary topworks styling and smooth lines enhance the foredeck
  • Our aft facing stainless pressure finger ensures smooth and trouble-free transition from rope to chain during retrieval and deployment
  • High ratio gearbox for fast retrieval
  • Stainless mainshaft
  • Worm drive sealed gearbox
  • Radially adjustable gearbox
  • Anodized aluminum gearbox housing
  • Bronze gears
  • Built in chainpipe
  • Neoprene deck gasket included
  • Clutch handle included
Specifications:
  • Motor Wattage 500W
  • Version Low Profile
  • Finish Chromed Bronze
  • Power Rating 850 lbs
  • Deck clearance w/standard deck stud Min. 18mm / Max. 30mm (1-1/8")
  • Retrieval Speed @ No Load 45'/min
  • Deck clearance w/optional deck stud To 1-3/4" - Deck Stud Item: LWPDB002
  • Amperes @ No Load 40
  • Retrieval Speed @ Working Load 52'/min
  • Amperes @ Working Load 60
  • Approximate Ship Weight (lbs) 22
