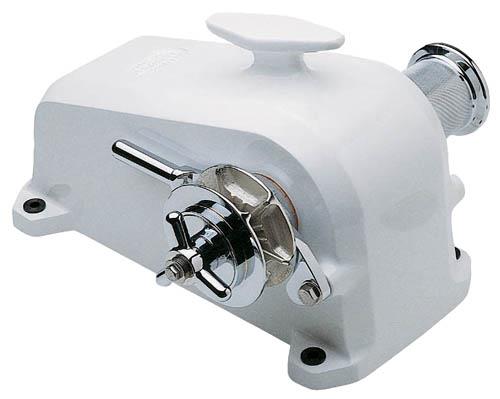

Jaguar Windlass 1500W 12V

SKU: IMT MHR3500024E

  • Sale
  • Regular price $9,742.00
Shipping calculated at checkout.


The powerful Compact range of horizontal windlasses provides the perfect alternative to vertical models for all recreational, commercial and fishing vessels up to 25 metres.
The Compact series of horizontal windlasses are ideal for installations where chain locker space is at a premium or not easily accessible.
These complete above deck units are constructed from durable marine alloy or new low-maintenance composite housings enclosing the powerful and heavy duty motor and gearbox, waterproofing and protecting it from the harsh elements.
Specifications:
  • Vessel Length: 45-65 ft (14-20m)
  • Voltage: 24VDC
  • Motor Wattage: 1500W
  • Max Load: 3500 lb (1590 kg)
  • Work Load: 800 lb (400 kg)
  • Amps Work Load: 85
  • Max Line Speed: 48 ft/min (14.5 m/min)
  • Chain Sizes: 5/16BBB or HT, 3/8BBB or HT, 7/16 HT, 1/2 HT
  • Rope Sizes: 1/2, 9/16, 5/8 in.
  • Finish: White Powder Coated Aluminum
  • Standard Equipment: Footswitch, Gypsy, Clutch, Manual Override Handle
  • Weight: 128.000 lbs.
