Imtra

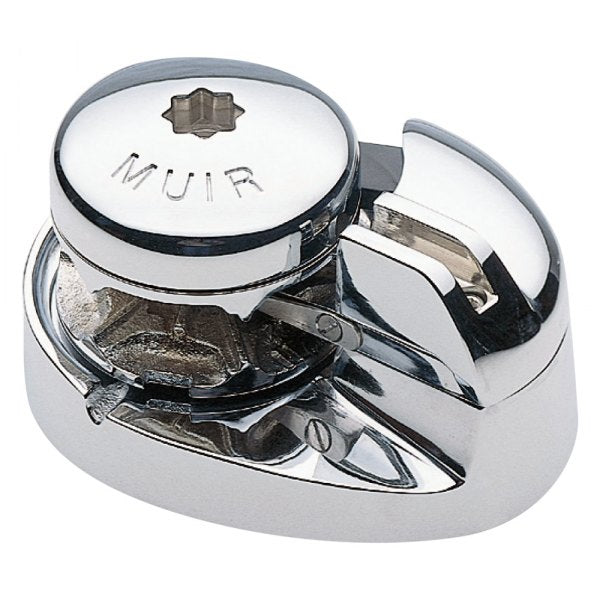

Storm 1250 Windlass Low Profil

SKU: IMT MSS1250R12E

  • Sale
  • Regular price $3,572.00
Shipping calculated at checkout.


Specifications:
  • Vessel Length: 32'-42' (10-13 m)
  • Voltage: 12 VDC
  • Motor Wattage: 1000 Watt
  • Max Load: 1100 lb (500 kg)
  • Work Load: 275 lb (125 kg)
  • Amps Work Load: 100
  • Max Line Speed: 48'/min (14.5 m/min)
  • Chain Sizes: 5/16 BBB or HT, 3/8 BBB or HT
  • Rope Sizes: 1/2, 9/16, 5/8"
  • Finish: 316 Stainless Steel
Features:
  • Polished stainless steel components
  • Rope chain combination gypsy for rope and chain combination or chain only
  • Rope Chain Management System (RCMS)
  • Quick release integrated swivel chain pipe cover
  • Gypsy with low profile clutch top arrangement
  • Heavy duty marine grade, dual direction motor in 12V and 24V DC, Hydraulic
  • Independent gypsy and capstan operation
  • Capstan model features heavy duty knurled finish for increased grip
  • Quick fit adaptor
  • Stainless steel shaft
  • Cone clutch/brake
  • Stainless steel mounting bolts
  • Shaft seal
  • Self lubricating bush
  • Clutch release handle
  • Made with premium materials
  • High-grade design delivers extended lifespan
