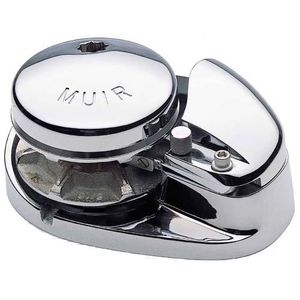

Storm 2200 Windlass Low Profil

The Storm 2200 Low Profile Windlass is ideal for boats ranging from 38' - 48'. The 2200 features identical topworks to the 1250 (and 850) but utilizes the 1200W motor of a Storm 2500.

Features :

• Dual Direction, Permanent Magnet Motor
• Stainless Worm Drive, Self-Aligning Radially Adjustable Gearbox
• 316 Stainless Steel Finish
• Bronze Gears
• Stainless Mainshaft
• Swiveling Chainpipe
• Chrome Chain Stripper with Stainless Steel Band
• Stainless Steel Studs, Washers, and Nuts
• Ideals for boats ranging from 38' - 48' (12-15m)

Specifications:

• 24V Low Profile Design
• 1200W Motor
• Power Rating 2200lbs
• Approximately 75 Amps Draw
• Approximately 75 Amps Work Load
• Max Load 2200lbs (1000kg)
• Work Load 550lbs (250kg)
• Max Retrieval Speed at 50ft/min.
• 1/4" HT/BBB, 5/16 HT/BBB, 3/8 HT/BBB Chain Size/Type (6mm, 8mm, 10mm)
• 1/2", 9/16", 5/8" Rope Sizes (12mm, 14mm, 16mm)
• Net weight 55lbs
• Max 60mm deck clearance (extra deck clearance available up to 6")
