SIGNAL MATE LLC

Signal Mate Stern LED Navigation Light

SKU: SIN 2NM135W

  • Sale
  • Regular price $210.00
Shipping calculated at checkout.

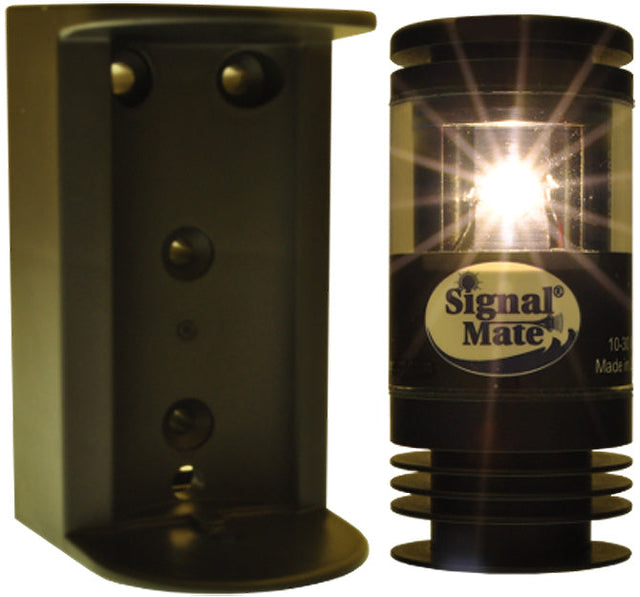

Stern Navigation Light

2 NM (nautical mile) LED navigation light, certified USCG/ ABYC A-16 & 72 COLREGS. This light is used for power, sailboats and commercial vessels up to 50 meters (164 feet). Used by military, commercial and recreational  vessels worldwide.

Specifications:

  • Visibility: 2NM Stern LED Navigation Light
  • Model #: 2NM135W
  • Certified: USCG Certified, ABYC A-16, 72 COLREGS
  • Boat type: Commercial, power, sailboat vessels to 50 meters (164 feet).
  • Horizontal Viewing Angle: 135 degrees
  • Voltage Range: 10-30 VDC Current Draw: 0.100 amps at 12 VDC
  • Protection: Polarity & 1500 watt surge
  • LED: High Brightness, 50,000 hours LEDs: 1 Watts: 1
  • Led Driver: Constant Current, Varying Voltage    EMI: Passive filtering.
  • Construction: Hard Coated Anodized Aluminum, polycarbonate lens.
  • Wiring: 2.5 feet, 2 wire, 20 AWG tinned, UV jacket marine wire.
  • Installation: 2 wire
  • Durability: Water & Vibration proof
  • Dimensions:  Height 3.25” x 1.5” Diameter  Weight: 6.4 oz.
  • Mounting: ¼” x 20 female threads on bottom of light for mounting.
  • Bracket Included: BRKTERM with wire termination area in rear of fixture.
  • Brackets Optional: BRKT360, PADPT1, PADPT75
  • Warranty: 5 Year Limited Warranty covering materials and workmanship.
  • Made in USA
