Signal Mate 360 Degree Anchor Light w/Photocell

SKU: SIN 3NM360WP

  • Sale
  • Regular price $275.00
Shipping calculated at checkout.

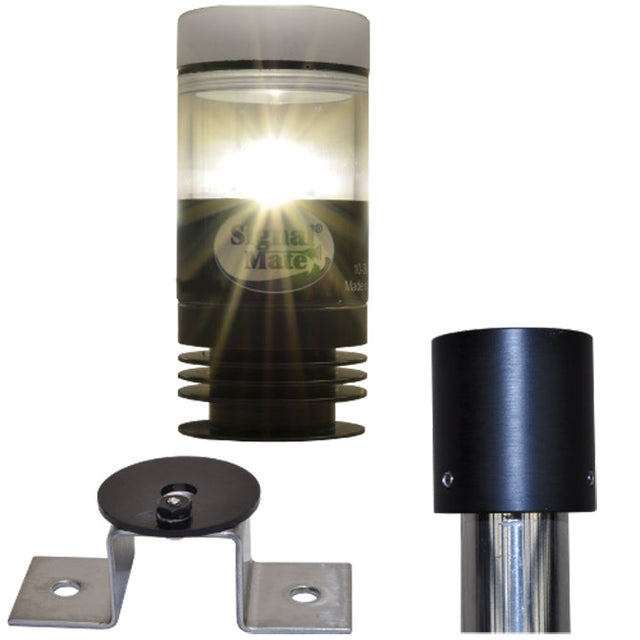

360 Degree Anchor Light

3 NM (nautical mile) LED navigation light, certified USCG/ ABYC A-16 & 72 COLREGS. This light is used for power, sailboats and commercial vessels up to 50 meters (164 feet). Used by military, commercial and recreational vessels worldwide.

Specifications:

  • Model #: 3NM360WP with photo-cell.
  • Visibility: 3NM Anchor, All round LED Navigation Light
  • Certified: USCG Certified, ABYC A-16, 72 COLREGS
  • Boat type: Commercial, power, sailboat up to and over 50 meters (164 feet).
  • Horizontal Viewing Angle: 360 degrees
  • Voltage Range: 10-30 VDC
  • Current Draw: 0.160 amps at 12 VDC
  • Protection: Polarity & 1500 watt surge
  • LED: High Brightness 50,000 hours LEDs: 1   Watts: 1   Color: White
  • Led Driver: Constant Current
  • EMI: Passive filtering.
  • Construction: Hard Coated Anodized Aluminum, polycarbonate lens.
  • Wiring: 2.5 feet, 2 wire, 20 AWG tinned, UV jacket marine wire.
  • Installation: 2 wire Durability: Water & Vibration proof
  • Dimensions:  Height 3.25” x 1.5” Diameter  Weight: 6.4 oz
  • Mounting: ¼” x 20 female threads on bottom of light for mounting.
  • Included: BRKT360
  • Brackets Optional:  PADPT1, PADPT75
  • Warranty: 5 Year Limited Warranty covering materials and workmanship.
  • Made in USA
