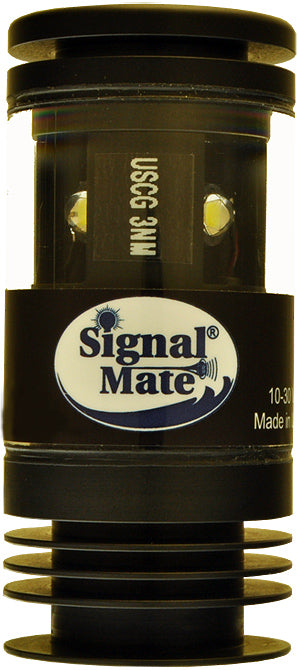

Masthead Steaming Light

Masthead (steaming)  3 NM (nautical mile) LED navigation light, certified USCG/ ABYC A-16 & 72 COLREGS. This light is used for power, sailboats and commercial vessels up to 20 meters (65 feet). Used by military, commercial and recreational vessels worldwide.

Specifications

• Visibility: 3NM Masthead (steaming) LED Navigation Light
• Model #: 3NMMH225
• Certified: USCG Certified, ABYC A-16, 72 COLREGS
• Boat type: Commercial, power, sailboat vessels to 20 meters (65 feet).
• Horizontal Viewing Angle: 225 degrees
• Voltage Range: 10-30 VDC  Current Draw: 0.160 amps at 12 VDC
• LEDs: 2   Watts: 2   Color: White
• Led Driver: Constant Current
• Protection: Polarity & 1500 watt surge
• LED: High Brightness 50,000 hours  EMI: Passive filtering.
• Construction: Hard Coated Anodized Aluminum, polycarbonate lens.
• Wiring: 2.5 feet, 2 wire, 20 AWG tinned, UV jacket marine wire.
• Installation: 2 wire
• Durability: Water & Vibration proof
• Dimensions:  Height 3.25” x 1.5” Diameter  Weight: 6.4 oz
• Mounting: ¼” x 20 female threads on bottom of light for mounting.
• Bracket Included: BRKTERM with wire termination area in rear of fixture.
• Brackets Optional:  BRKT360, PADPT1, PADPT75
• Warranty: 5 Year Limited Warranty covering materials and workmanship.
  Made in USA
