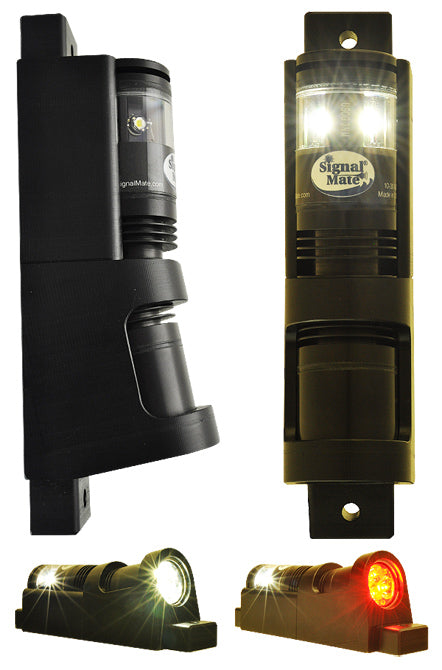

Signal Mate Combo Masthead/Deck White Light

Combination Masthead with White Deck Light

3 NM (nautical mile) LED navigation light, certified USCG/ ABYC A-16 & 72 COLREGS. This light is used for power, sailboats and commercial vessels up to 20 meters (65 feet). Used by military, commercial and recreational vessels worldwide.

Specifications:

Model #: 3NMMHDKW
Visibility: 3NM Combination masthead with White deck LED Navigation Light

Certified: USCG Certified, ABYC A-16, 72 COLREGS
Boat type: Commercial, power, sailboat vessels to 20 meters (65 feet).
Horizontal Viewing Angle: 225 degrees
Voltage Range: 10-30 VDC
Current Draw: 0.300/0.300 amps at 12 VDC
LEDs Masthead: 2
Watts: 2   Color: White
LEDs Deck: 3
Watts: 3 Color: White
Led Driver: Constant Current
Protection: Polarity & 1500 watt surge
LED: High Brightness 50,000 hours
EMI: Passive & Active filtering.
Construction: Hard Coated Anodized Aluminum, polycarbonate lens.
Wiring: 2 x 2.5 feet, 2 wire, 20 AWG tinned, UV jacket marine wire.
Installation: 3 wire
Durability: Water & Vibration proof
Dimensions:  Height 7.75” x 2” Diameter  Weight: 17 oz
Mounting: (2) ¼” holes top and bottom of fixture.
Bracket Included: Machined HDPE
Warranty: 5 Year Limited Warranty covering materials and workmanship.
Made in USA
