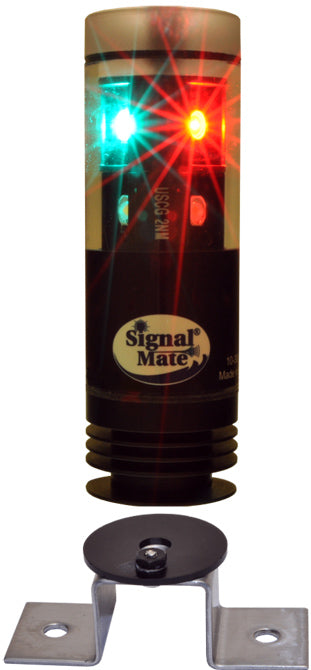

Signal Mate Tri-Color Anchor Light 2 Wire


  • Sale
  • Regular price $380.00
Shipping calculated at checkout.

Combination Tri-Color with Anchor

(2-wire installation) 2 NM (nautical mile) LED navigation light, certified USCG/ ABYC A-16 & 72 COLREGS. This light is used for sailboats up to 20 meters (65 feet). The light also has a built in Windex illumination window for night time sailing. Used by recreational vessels worldwide.


Model #: TRIANC2 without photo-cell
Two wire installation: 2 wires are required for this light.
Visibility: 2NM Combination Tri-Color & Anchor LED Navigation Light
Certified: USCG Certified, ABYC A-16, 72 COLREGS
Boat type: sailboat vessels to 20 meters (65 feet).
Horizontal Viewing Angle: 112.5/ 112.5/ 135/ 360 degrees.
Windex Illumination: Built in illumination window.
Voltage Range: 10-30 VDC
Current Draw: 0.300 amps at 12 VDC
Protection: Polarity & 1500 watt surge
LED: High Brightness 50,000 hours
LEDs: 3 Watts: 3 Color: Red, Cyan, White.
LEDs: 3 Watts: 3 Color: White
Led Driver: Constant Current.
EMI: Active filtering.
Construction: Hard Coated Anodized Aluminum, polycarbonate lens. Wiring: 2.5 feet, 2 wire, 20 AWG tinned, UV jacket marine wire.
Installation: 2 wire
Durability: Water & Vibration proof.
Dimensions: Height 4.5” x 1.5” Diameter Weight: 8.2 oz
Mounting: ¼” x 20 female threads on bottom of light for mounting.
Bracket Included: BRKT360 Brackets Optional: PADPT1, PADPT75
Switch Included: Double Pole Double Throw (DPDT) reversing switch.
Warranty: 5 Year Limited Warranty covering materials and workmanship.
Made in USA
