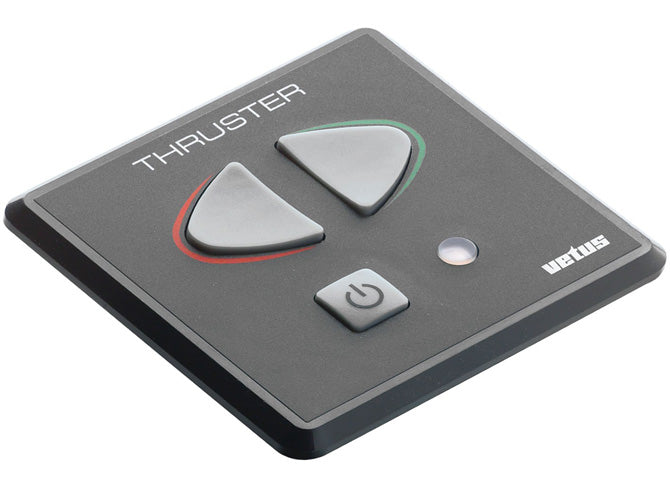

Touch Panel Controller (BPSE2) by Vetus®. Single touch switch panel for operating a Vetus Bow or Stern Thruster. Supplied with Vetus quick connectors for BP29 series loom cables - including provision for easy daisy chaining of additional controls at second or third control positions.
- Dimensions: 85 mm L x 85 mm W
- Ingress Protection Rating: IP66
- Voltage: (V) 12 and 24 V
- With Time Delay: Yes
- Control: Touch panel
- Protected against accidental or unauthorized operation
- Panel power on indicator
- Control circuit overload protection
- Built-in time lapse device when reversing the direction of rotation
- Automatic switch off after 30 minutes inactivity. This feature is user selectable during installation
- In the event of continuous running for more than 2 minutes there is a warning LED and buzzer and the thruster will switch off automatically. The panel will reset itself after 5 seconds.
- Watertight to IP 66
