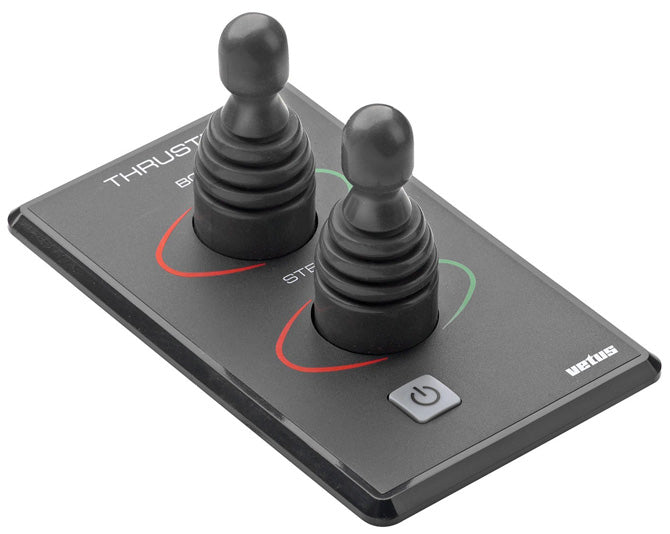

Vetus Bow/Stern Thruster Control Panel

12-24 V Dual Joystick Panel Controller for Bow & Stern Thrusters with w/ Time Delay (BPJDE2) by Vetus®. Dual joystick panel for operating a Vetus Bow or Stern Thruster. Supplied with Vetus quick connectors for BP29 series loom cables - including provision for easy daisy chaining of additional controls at second or third control positions.

Specifications

• Dimensions: 138 mm L x 85 mm W
• Ingress Protection Rating: IP65
• Supply Voltage: 12-24 V
• Accessories: w/ Time Delay
• Fits: Bow & Stern Thrusters

Features

• Protected against accidental or unauthorized operation
• Panel power on indicator
• Warning LED and buzzer in the event of continuous running for more than 2 minutes
• Control circuit overload protection
• Built-in time lapse device when reversing the direction of rotation
• Automatic switch off after 30 minutes inactivity. This feature is user selectable during installation
• In the event of continuous running for more than 2 minutes there is a warning LED and buzzer and the thruster will switch off automatically. The panel will reset itself after 5 seconds
