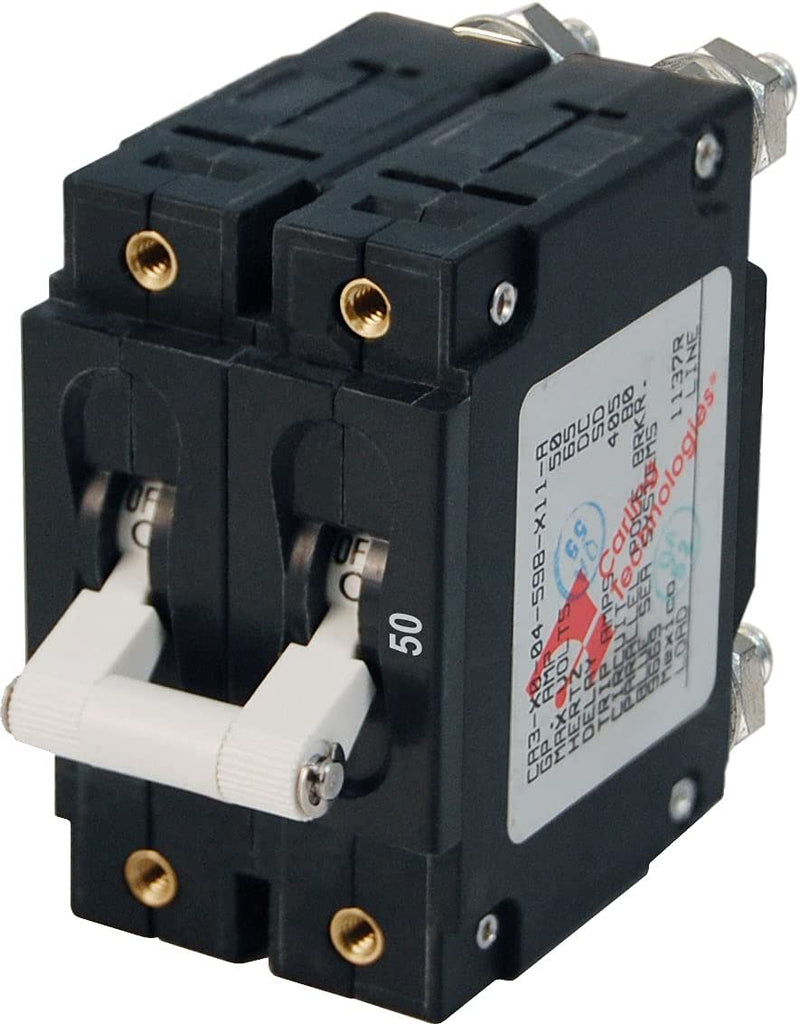

50 AMP DOUBLE CKT BRK WHITE
- The Blue Sea Systems C Series Circuit Breakers provide overcurrent protection for inverters, bow thrusters, and windlasses.
- Combines switching and circuit protection into a single device. "Trip Free" - cannot be held closed after trip. Double pole used as 120 volt AC main circuit breaker to switch hot and neutral. Double pole circuit breakers will trip all poles if any one pole trips
- Maximum Voltage: 120V AC | 240V AC | 80V DC. Terminal Stud: 1/4-20 Tin-Plated Brass. Terminal Stud Torque: 35 in-lb
- Interrupt Capacity: 5000A @ 240V AC. Minimum Operating Temperature: -40° C. Maximum Operating Temperature: 85° C
- Mounting Screw: #6-32 Stainless Steel. Mounting Screw Torque: 6 in-lb
