Cole Hersee Cole Hersee 3-Position Push-Pull Switch

  • Sale
  • Regular price $33.96
  • 1 available
Shipping calculated at checkout.

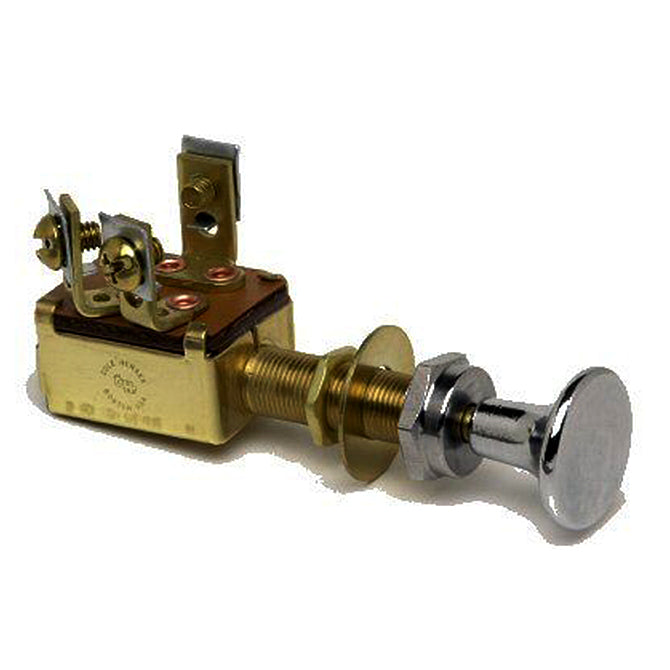

Cole Hersee Cole Hersee 3-Position Push-Pull Switch

Pole / Throw: SPDT, Action: OFF - ON#1 - ON#1 & #2

Max. Operating Amperage: 10 Amps @ 12 Volt DC

Allows Independent Control of (2) Circuits (e.g., Lighting) with (1) Switch

Features:

  • Two-circuit push-pull switch, normally off (pull for ON)
  • Allows (2) circuits to be operated independently with one switch
  • Heavy duty corrosion-resistant construction
  • Supplied with mounting hardware: brass facenut, washer and hexnut
  • Installs in panels up to 1" thick
  • 1-year limited warranty

Specifications:

  • Switch Type: Push-Pull
  • Circuitry: SPDT - Single Pole / Double Throw
  • Action: OFF - ON#1 - ON#1 & #2
  • Material: Brass housing and mounting stem, screw-on chrome-plated brass knob
  • Illumination: No
  • Common Applications: Ideal for control of lighting circuits such as cabin and running lights
  • Operating Voltage: 6 - 36 Volt DC
  • Max. Operating Amperage: 10 Amps @ 12 Volt DC
  • Terminals: (3) Brass screw
  • Dimensions:



  • Face knob: 3/4" dia.
  • Brass Mounting Stem: 3/8" dia. x 1-1/4" L
