JOHN COLLARD

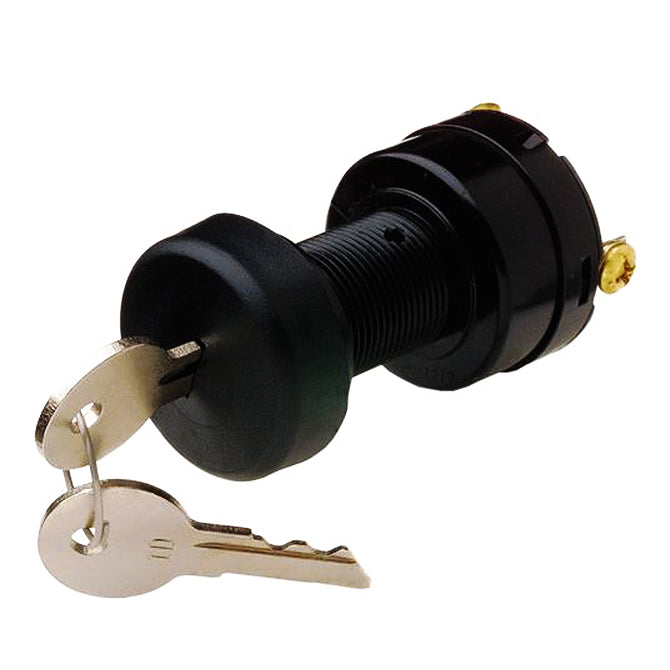

Cole Hersee Plastic Body Marine Ignition Switch - 3 Pos. Off/Ign/Ign Start

SKU: COL M850BP

  • Sale
  • Regular price $31.43
Shipping calculated at checkout.


Cole Hersee Plastic Body Marine Ignition Switch - 3 Pos.

15A rugged plastic ignition switches for marine applications.

Impact-resistant body cannot ruse or corrode. Ignition switches operate similarly to traditional switches: "Run" position actuates radio, radar, blower, lights and other accessories. Fits most OEM applications with a standard 7/8" mounting hole.

  • Ratings at 6-36V DC: 15A Ignition, 5A Start
  • Key is removable only in the Off position. Spring return to Ign.
  • 3 nickel-silver screw terminals
  • Durable plastic case and stem with PVC boot for added weather protection
  • Mounting stem fits panels up to 7/8: (22.2mm) thick, with 7/8" diameter hole
  • Fits many boats, including Baja, Celebrity, Chapparral, ChrisCraft, Luhrs, larson, FourWinns, Crest5liner, Mariah, Powerquest, Rinker, S2 Yachts, Silverton Yacht, Thompson, Thunderbird (Formula), Wellcraft

Features:

  • Marine Switch 3 Position Ignition Off/Ign/Ign Start
  • Push for choke, coded key actuator
  • Impact resistant plastic body
  • 3 screw terminals, nickel silver contacts
  • Individual key codes for added security
  • Long stem suits panel up to 33mm thick

Specifications:

Voltage

6V-36V Multivoltage

Amperage

15A@6-36V ignition, 20A@6-36V start

Dimensions

H 72 x Ø 38

Modes

Off/Ign/Ign Start

Series

Ignition Key Start

Application

Marine, Key Start

.
