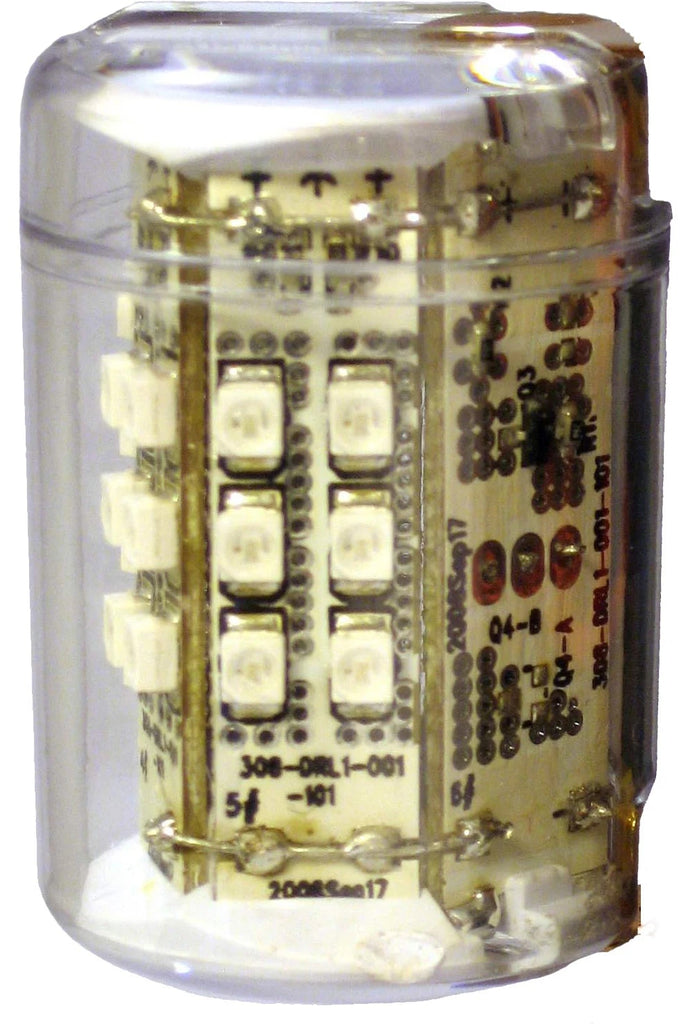

Dr. LED Bi Color Polar Star 25

Dr. LED Bi-Color Polar Star 25 Navigation LED is a bi-color (red / green) 12 Volt DC, 2 NM LED replacement bulb for Signal Series 25 bow navigation lights.

Features:

• Replaces existing incandescent navigation bulbs with 44 mm S8.5 pointed and dimpled festoon sockets
• Includes "U" clips for Aqua Signal Series 25 pointed festoon fixtures
• Very low power consumption approximately 1.5 Watts (non-polarized connection)
• Zero radio frequency (RF) emission, surface-mount-device (SMD) design
• Internal circuitry provides constant current draw regardless of voltage fluctuations from source
• Long service life, shockproof and ultra-rugged with no filament to burn out or break
• Lead- and mercury-free with no UV output
• Dimmable with PWM (pulse width modulation) dimmers

Specifications:

• Base / Socket: 44 mm S8.5 Festoon
• Brightness: 45 Lumens
• LED Light Color(s): Red / green
• Nominal Voltage: 12 Volt DC
• Power Consumption: 1.5 Watts
• Current Draw: 0.12 Amp @ 12 Volt DC
• Dimensions: 1.26" (32 mm) dia. x 1.73" (44 mm)
• Regulatory: 2 NM USCG ABYC A-16 certified, RoHS compliant
