Imtra

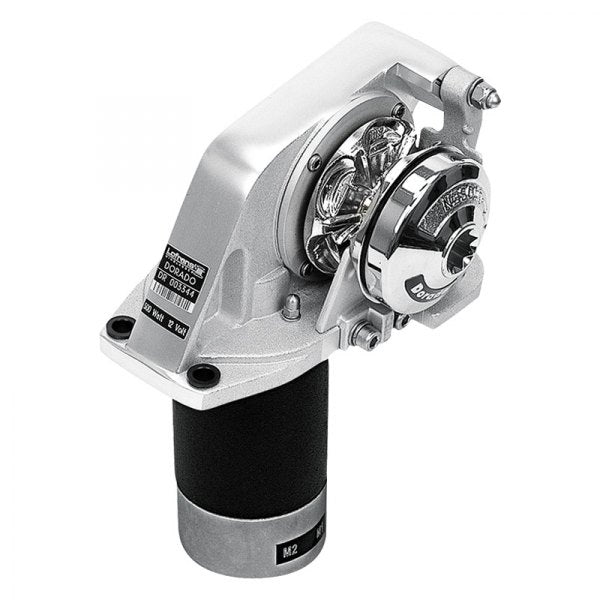

Dorado 700W Windlass 12V

SKU: IMT LW280AN

  • Sale
  • Regular price $1,332.50
Shipping calculated at checkout.


The DORADO horizontal electric windlass is deal for boats up to 32' with restricted anchor lockers. The vertically mounted motor and small profile make it a perfectly compact system. Easy to install, the DORADO windlass can be easily dropped into small or restricted anchor lockers. The motor installs vertically directly under the windlass housing to save space.

Specifications:
  • Power Supply 12V
  • Motor Wattage 700W Dual Direction Permanent Magnet
  • Power Rating (lbs) 1075
  • Finish Anodized
  • Standard Equipment RCMS, Watertight Solenoid Box & Clutch Handle
  • Working Load 90 lbs. (40 kg)
  • Approx. Amp Draw 50-110
  • Amperes @ Working Load 70
  • Max Retrieval Speed (ft./min.) 75
  • Retrieval Speed @ Working Load 52 ft./min (16m/min)
  • Chain Size 1/4"
  • Rope Sizes 1/2"
  • Weight 17.000 lbs.
