Imtra

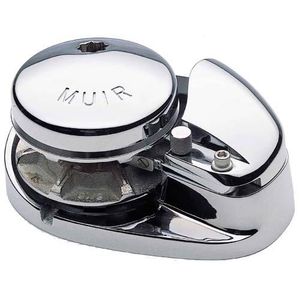

Storm 2200 Windlass Low Profil

SKU: IMT MSS2200R24E

  • Sale
  • Regular price $2,992.50
Shipping calculated at checkout.


The Storm 2200 Low Profile Windlass is ideal for boats ranging from 38' - 48'. The 2200 features identical topworks to the 1250 (and 850) but utilizes the 1200W motor of a Storm 2500.

Features :

  • Dual Direction, Permanent Magnet Motor
  • Stainless Worm Drive, Self-Aligning Radially Adjustable Gearbox
  • 316 Stainless Steel Finish
  • Bronze Gears
  • Stainless Mainshaft
  • Swiveling Chainpipe
  • Chrome Chain Stripper with Stainless Steel Band
  • Stainless Steel Studs, Washers, and Nuts
  • Ideals for boats ranging from 38' - 48' (12-15m)

Specifications:

  • 24V Low Profile Design
  • 1200W Motor
  • Power Rating 2200lbs
  • Approximately 75 Amps Draw
  • Approximately 75 Amps Work Load
  • Max Load 2200lbs (1000kg)
  • Work Load 550lbs (250kg)
  • Max Retrieval Speed at 50ft/min.
  • 1/4" HT/BBB, 5/16 HT/BBB, 3/8 HT/BBB Chain Size/Type (6mm, 8mm, 10mm)
  • 1/2", 9/16", 5/8" Rope Sizes (12mm, 14mm, 16mm)
  • Net weight 55lbs
  • Max 60mm deck clearance (extra deck clearance available up to 6")
