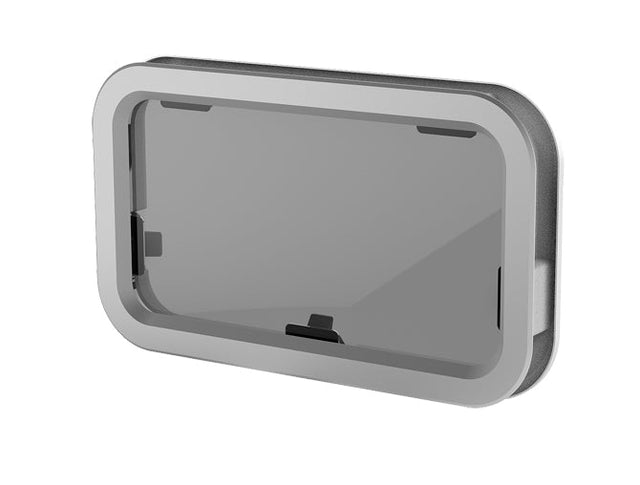

Lewmar Standard Opening Portlight Size 1 - Smoke/White 14-7/16" x 7-1/2"

Download Lewmar Hatch & Portlight Fitting Guide.pdf

 Features:

• CE approved for deck, coach roof, cockpit and transom installations - Design Category A / Area 2
• Portlight is stylish yet competitively priced
• Quick and simple installation with no complicated cut-out shape
• Can be installed with sealant or closed-cell PVC tape
• Click-stop hinges provide a choice of (4) fixed positions
• Quick-action clip handles
• Supplied with ABS plastic interior trim kit (color: white) and insect screen
• 3-year warranty

Specifications:

• Lewmar Model No. 393020500
• Materials:
• Lens: 5/16" (8 mm) smoke gray acrylic
• Frame: Clear-anodized aluminum
• Dimensions:
• Cutout: 13-5/8" x 6-3/4" (347 mm x 171 mm) with 2-1/16" (52 mm) corner radius
• Overall: 14-7/16" x 7-1/2" (367 mm x 191 mm)
• Hull / Mounting Thickness: 1/4" - 1-3/8" (7 mm - 34 mm)
