lewmar

sz 54 low profile hatch green

SKU: LEW 39954430

  • Sale
  • Regular price $632.21
Shipping calculated at checkout.

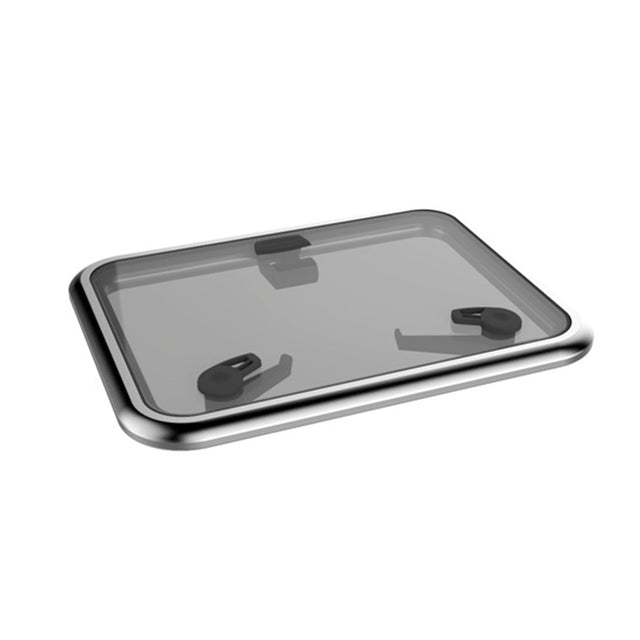

The Lewmar Low Profile Hatch has soft styling and sleek looks, ideal for use on a powerboat. Smaller ventilation hatches are suitable for any deck location on sailboats, while the larger sizes can be used as foredeck hatches on smaller to mid size yachts.

Product Features
  • Outside handles allow the hatch to be opened from on deck if it is not locked
  • Low profile hatches open up to 180° (round hatches open to 170°)
  • Friction levers hold the lid open in any position up to 95°
  • Anodised aluminium frame for corrosion resistance
  • Curved upper frame profile for strength as well as modern styling

Specifications:

  • Size: 54
  • Lower Frame Flange: 15 mm / 9/16 in
  • X (length): 463 mm / 18 1/4 in
  • Y (width): 578 mm / 22 3/4 in
  • Z (height): 32 mm / 1 1/4 in
  • R (radii): 78 mm / 3 1/16 in
  • X (length)1: 392 mm / 15 7/16 in
  • Y1 (cut out width): 507 mm / 19 15/16 in
  • R1 (cut out radii): 42.5 mm / 1 11/16 in
  • Hatch Weight: 6.5 kg / 14.3 lb
  • Acrylic Window Thick: 12 mm / 1/2 in
