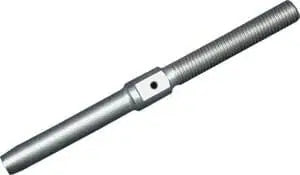

The MS21259 series stud end fittings from Loos Cableware® Division are manufactured from stainless steel in accordance with MIL-DTL-781 to the strict standards of MS21259 and are certified to that standard. Loos Cableware® Division offers a full range of sizes in this part series of stainless steel swage fittings. These cable fittings are used throughout the cable and wire rope industry in applications where a cable must be terminated with a swage fitting that will exceed the minimum breaking strength of the cable onto which it is swaged.
Specifications:
MS Part LH Thread MS21259-12LH*
Cable Dia. 3/8
Thread B UN-3A UNF-3A (9/16)-18
A Dia 0.703
As Dia 0.625
C Dia 0.529
D 0.75
L ±.063 6.656
Ls Ref 7.06
N Dia 0.404
