Maxwell Windlass HRC10 Horizontal 12V for 3/8 Chain - 5/8 Rope


  • Sale
  • Regular price $2,969.00
Shipping calculated at checkout.

HRC Series Windlasses

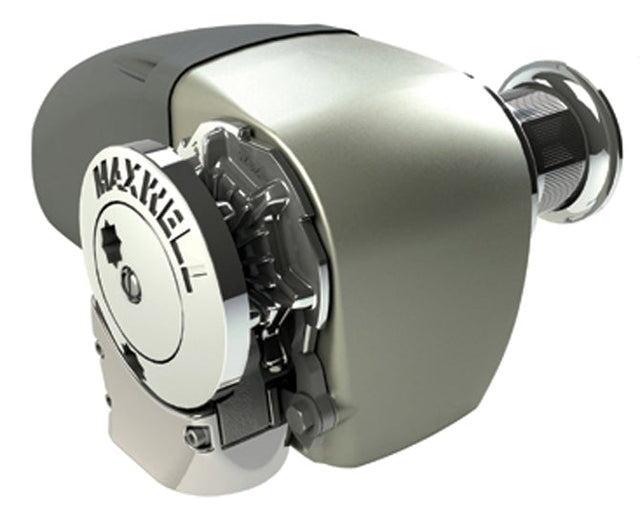

HRC10 Rope/Chain Windlass

The new HRC Series is Maxwell’s latest selection of fully automatic horizontal rope/chain or all chain anchor windlasses. The HRC Series includes Maxwell’s patented Wave Design chain wheel that allows for any type of marine chain to be used on the windlasses. This means that High Test, BBB or any other marine anchor chain can be used. The compact HRC 6 and HRC 8 incorporate Maxwell’s automatic free fall technology. This new feature allows for free fall operation from the helm and if you do not want the free fall option, simply flip a lever on the unit to shut it off. A trouble-free rope/chain transition is guaranteed by means of an innovative, proven and patented pressure arm system, within a safe, enclosed design.

The HRC 10-8 and 10-10 have an aesthetically-pleasing, entirely above-deck design which encapsulates the motor and drive in a two-part watertight case consisting of a die cast, marine grade, hard anodized alloy front section and a rugged, easily removable composite motor cover. This allows for quick and easy on-deck access.

  • Style: Horizontal
  • Rode Type: Rope/chain
  • Case Material: Anodized aluminum
  • Capstan/Gypsy Material: Stainless steel
  • Warranty: Three years limited
Amperage 130 Amps
Diameter 3/8" Chain
5/8" Line
Material Anodized Aluminum
Maximum Pull 1870 Pounds
Minimum Boat Length 30 Feet
Maximum Boat Length 53 Feet
Retrieval Speed 80' per Minute at 500 Pounds
Anchoring Speed 80' per Minute
Style Horizontal
Type Rope and Chain Rode
Warranty Details Three Years Limited
