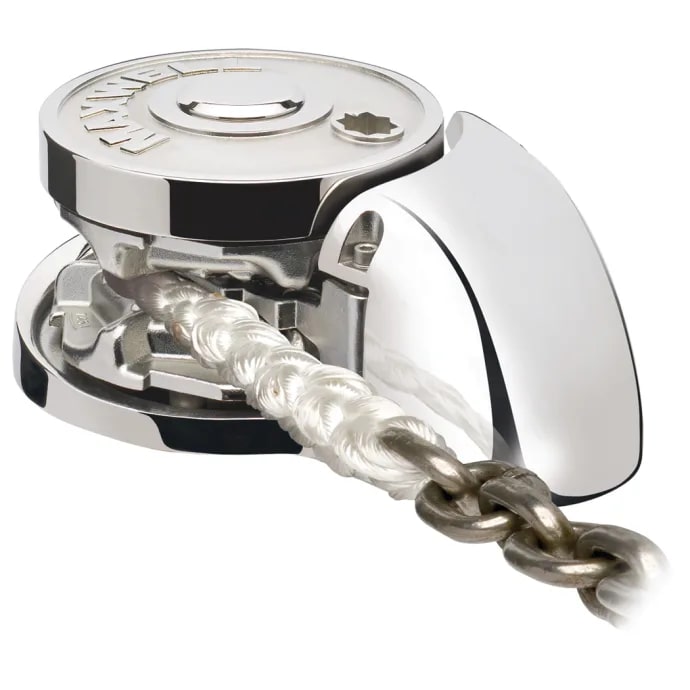

RC 12 - 10 12v 3/8"" chain & 3

SKU: MXW RC121012V

  • Sale
  • Regular price $3,887.00
Shipping calculated at checkout.


• Wave Design chainwheel provides superior holding power and less rope wear, see below
• Each chainwheel will accommodate HT, BBB, or metric short link chain of the designated size
• RC12-10 will accommodate 3/8" HT/BBB or 10mm short link marine chain spliced to 5/8" - 3/4" three-strand or 8-plait rope
• Simple 2-piece installation with no need to disassemble the windlass - saves time and money
• Easy maintenance accessibility
• Manual retrieval and double cone clutch controlled "free fall" deployment option using emergency handle provided
• Engagement of "Active Latch Ratchet System" prevents backwind of the windlass during emergency manual retrieval of extra heavy ground tackle
• Top works manufactured from marine grade chromed bronze and stainless steel for outstanding saltwater durability
• Sealed oil bath and marine grade hard anodized aluminum alloy gearbox with precision worm drive for maximum power output
• Extra deck thickness kit is available by special order
• Dimensions on deck: 11-5/8"L x 8-1/8"W x 5-1/8"H; Capstan Models: 9-1/4"H
• As with all windlasses, use in conjunction with a chain stopper or snubber to take the load when lying at anchor
• 3-year limited warranty
• Note that G4, G40, G43, and High Test (HT) chains are equivalent for sizing purposes
