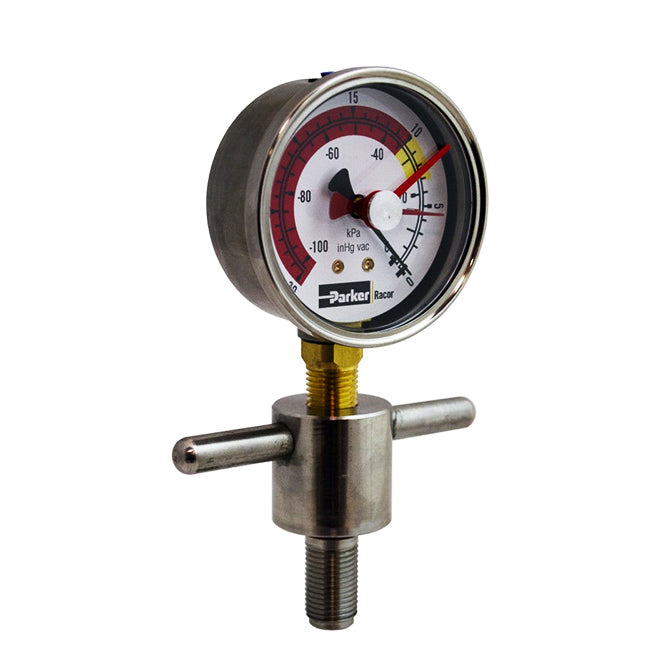

Racor Turbine Series T-Handle Vacuum Gauge Kit for 500FG (All after 2002), 900/1000

Fits: Fits 500 (manufactured after 2002), 900 and 1000 model Turbine Series fuel filter/water separators, including UL marine listed models (MA versions).

Vacuum/restriction indicators monitor filter condition as the filter slowly becomes clogged with contaminants. As the filter gets dirty, restriction increases and less fuel is delivered to the engine causing the engine to lose power and eventually stall.

By installing a vacuum/restriction indicator in your fuel system, visual monitoring of filter condition is possible at a glance, increasing fuel system troubleshooting efficiency, eliminating guess work, and lengthening filter change out intervals.

Features:

• Gauge Thread Size (threads that screw in to top of t-handle): 1/4-18 NPTF
• T-handle Thread Size (threads that screw in to top of turbine filters): 9/16-18 UNF - 2A
• Gauge reads vacuum -30 to 0 "Hg
• No tools required
• Stainless steel material provides superior corrosion resistance
• Compatible with all Turbine series (500 (manufactured after 2002), 900 and 1000)
• UL approved for use on marine listed models (MA versions)
• Eliminates the guesswork from fuel filter maintenance
• Lowers operational costs and extends filter life
