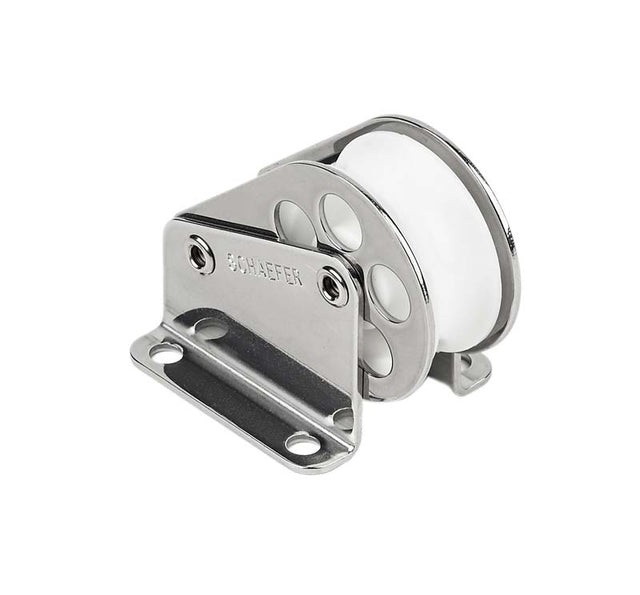

BLOCK HALYARD LIFT SINGLE

03-50 Halyard/Control block. Delrin(tm) sheave ensures smooth operation and high safe working load. Stainless cheeks and base provide a solid platform.

Specifications:

Sheave Dia. 1-7/16, (37 mm)
Max Wire 7/16, (11 mm)
Jaw Opening 1-3/4, (44 mm)
Pin. Dia. 1-5/8, (41 mm)
Length 1-31/32, (50 mm)
Width 19/32, (15 mm)
Thickness (4), #10 RH (5 mm)
C/C Length 1-5/32, (29 mm)
C/C Across 1-5/16, (33 mm)
SWL 1000 lbs. (454 kg)
