Shakespeare 5206-N Classic VHF Antenna

  • Sale
  • Regular price $72.74
Shipping calculated at checkout.

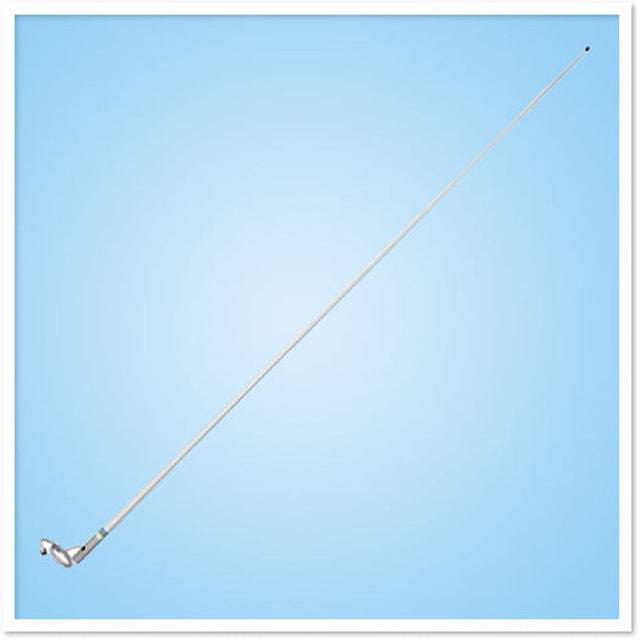

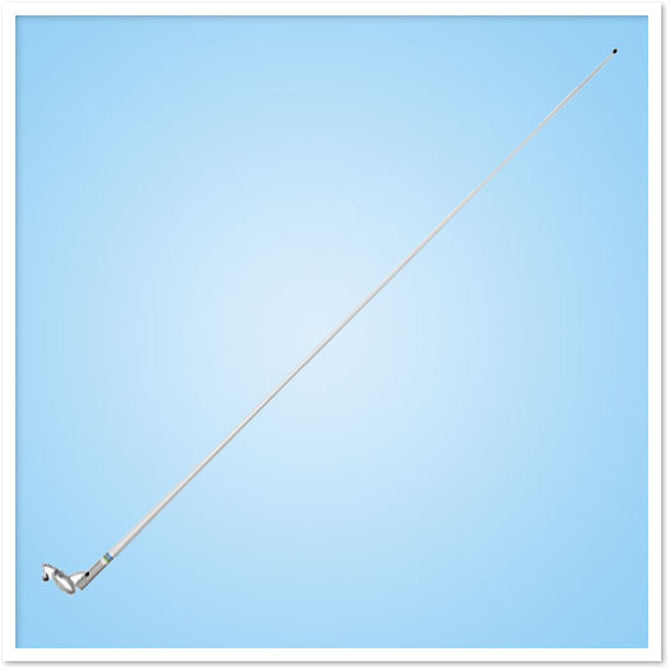

5206-N Classic VHF Antenna

8’ (2.4m) VHF Marine Band 6dB

End-fed with matching stub

An economical and lightweight, self-supporting antenna for good communications where range is not the predominant factor. The 5206-N has a nylon ferrule.

  • Quality copper cable elements for good range and efficiency
  • Nylon ferrule.
  • Includes 15ft RG-58 cable, which can be cut to size, and a PL-259 connector
  • Suggested mount: Style 495 Lift ‘n Lay Mount or Style 4186 Ratchet Mount (sold separately)
  • Great value!
  • One section
Shakespeare 5206-N Specifications
Band: VHF Marine Band
Antenna Gain: 6dB
Max. Input Power: 50 watts
SWR: nominally 1.3:1 at 156.8 MHz
Bandwidth: 5 MHz within 2.0:1 VSWR
Ferrule: Nylon
Coax Supplied: 15 ft of RG-58
Connector Supplied: PL-259, not installed
Color/finish: White
Polarity: Vertical
Impedance: 50 Ohms
DC Ground: No DC Ground – The antenna will read open on continuity test.
Shakespeare
Limited Warranty:
2 years
