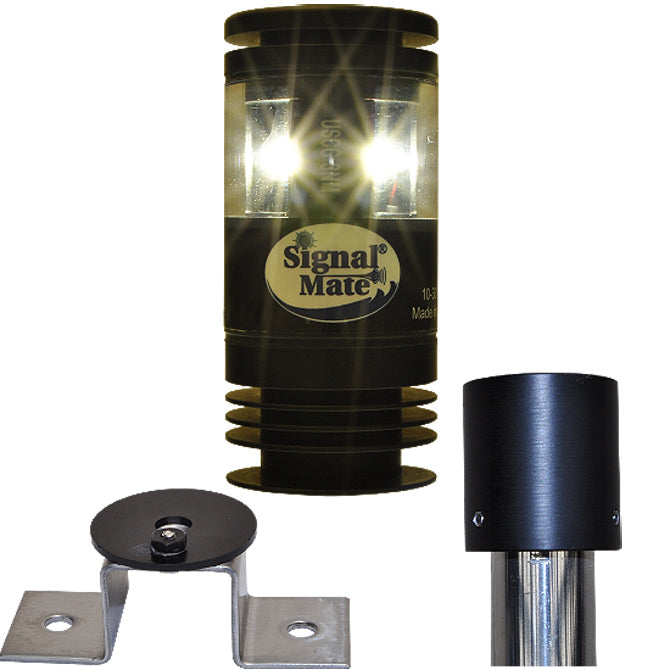

Combination Masthead and Anchor
3 NM (nautical mile) LED navigation light, certified USCG/ ABYC A-16 & 72 COLREGS. This light is used for power, sailboats and commercial vessels up to 20 meters (65 feet). Used by military, commercial and recreational vessels worldwide.
Visibility: 3NM Combination Masthead & Anchor LED Navigation Light
Model #: 3NMMHANC
Certified: USCG Certified, ABYC A-16, 72 COLREGS
Boat type: Commercial, power, sailboat vessels to 20 meters (65 feet).
Horizontal Viewing Angle: 225 & 360 degrees
Voltage Range: 10-30 VDC Current Draw: 0.180 /0.260 amps at 12 VDC
LEDs: 3 Watts: 3 Color: White
Led Driver: Constant Current
Protection: Polarity & 1500 watt surge
LED: High Brightness 50,000 hours EMI: Passive filtering.
Construction: Hard Coated Anodized Aluminum, polycarbonate lens.
Wiring: 2.5 feet, 3 wire, 20 AWG tinned, UV jacket marine wire.
Installation: 3 wire
Durability: Water & Vibration proof
Dimensions: Height 3.7” x 1.5” Diameter Weight: 6.5 oz
Mounting: ¼” x 20 female threads on bottom of light for mounting.
Bracket Included: BRKT360
Brackets Optional: PADPT1, PADPT75
Switch Included: Double Pole Double Throw (DPDT)
Warranty: 5 Year Limited Warranty covering materials and workmanship.
Made in USA
Installed this on our mast on our trawler, great idea, two lights in one. Ran new wire & installed 2 new switches (anchor & running).
After install checked operation and all fine. Used once to anchor. Two days later anchored again and checked if the light was on, it was not.
After lowering mast and checking wires & power (ground to both +’s fine) had to change back to the old light.
Guess I will find out if their warranty is worth the paper it’s printed on.
