Johnson Marine Quick Release Lever 1/8 Wire 1/4 Pin

  • Sale
  • Regular price $73.80
  • 2 available
Shipping calculated at checkout.

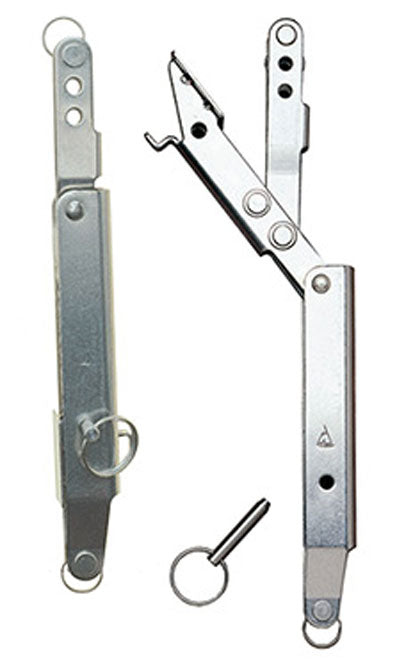

Quick Release Levers The Johnson Hyfield Type Lever has a number of very practical features that have been developed after etensive testing on both high performance multi-hulls and monohulls.

The fitting is rugged, having an ultimate strength of 2,500 lbs. A positive stop is provided to prevent jamming fingers between fitting and wire when thrown open under load and the large surface area of the push pad makes it easier to close lever under load. Lever take-up is 2 1/8" to an over-center position and comes with a quick release pin for positive locking.

Cat. No. Extender # of Holes Wire Size Approx. Breaking Strength Pin Dia. Q.R. Throw Pin to Pin SWL
14-205 3 To 1/8" 2,500 1/4" 2-1/4" 7-3/8" min. - 8-3/8" max. in 1/2" increments 1000 lbs
