Johnson Marine Quick Release Lever Large (No Terminal) 3/16 Wire 5/16 Pin

  • Sale
  • Regular price $92.82
Shipping calculated at checkout.

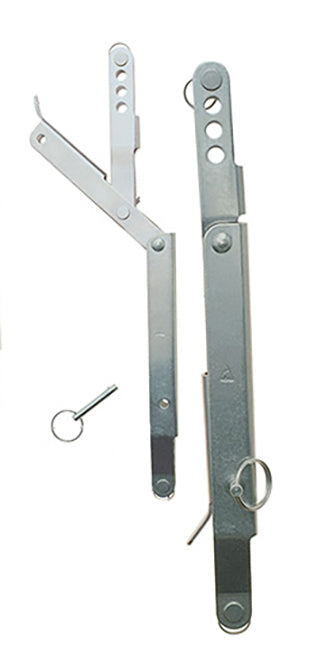

Quick Release Levers This new quick release lever is similar in principle to our popular 14-205/206 series. It is larger with an ultimate strength of 4,000 lbs. It is supplied with either an extender for a terminal eye or a 5/32" or 3/16" wire swage terminal. Comes complete with a quick release pin for instant throw off. It features an over center lever intended for headstays on trailerable boats. Can also be used for inner forestays on larger boats in the 40 ft. range.

Cat. No. Type Wire Size Approx. Breaking Strength Pin Dia. Max Adj. Q.R. Throw Pin to Pin Closed SWL
14-211-5* 5/16-24 R.H. Lug Only 3/16" 4,000 5/16" 2-1/4" 2-5/8" Pin to Lug Center 6-1/8" 1600 lbs
