SINGLE XCS0610

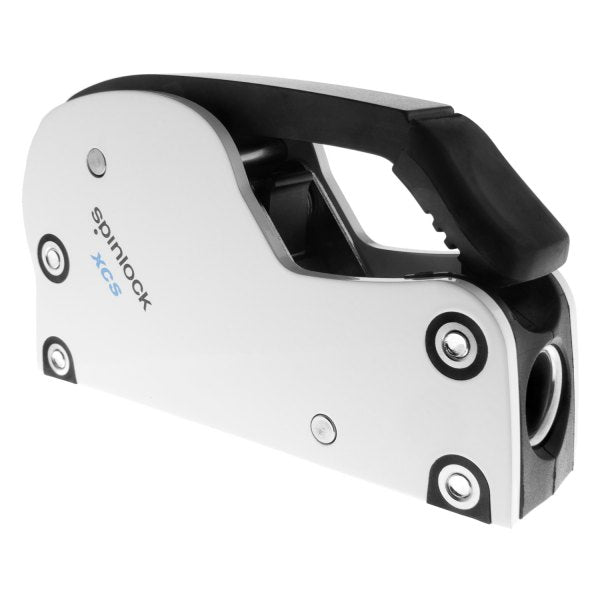

XCS Series White Steel Single Clutch for 1/4"-3/8" D Ropes (XCS0610/1W) by Spinlock®. The XCS clutch offers a range of quality finished to match your deck or rig. Small diameter, high load. For 6-10mm lines and optimised for 8-10mm lines. Strongly recommended for high strength small diameter line.

Features:

• Aluminium sides for sustained higher load operation
• Choose XCS when the mounting location requires extra durability, such as mast mounting, when matching surface finishes for aesthetics
• Mid to higher load rope holding
• Reliable all around performance
• For best performance on smaller diameter lines
• Extruded alloy handle with soft end grip
• Secure handle locking in open and closed position
• Easy access to fasteners
• Handle labels supplied
• Side mounting is usually the neatest solution for spars, side decks and coamings
• Engineered to help enhance safety and productivity
• Guaranteed to deliver reliable, long-lasting service
• Delivers reliable performance under all weather conditions

Specifications:

• Color: White
• Loads: Up to 2200 lb (1000 kg)
• Material: Steel
• Max Rope Diameter: 1/4" - 3/8" (6 mm - 10 mm)
• Weight: 22.1 oz. (630 g)
• Fasteners: 2 x M8 (5/16") Csk Head (Not Supplied)
